OnSTAFF 2000
UTILITY/SET UP/
PRINTER MENU
Menu Options:
Devices This area will be maintained by your vendor.
Capability This area will be maintained by your vendor.
Report Setup This option contains the definition of On-Staff report formats.
Report Step two for adding new users and their default Report printer destinations.
Exit Returns you to the Printer Menu.
Set Up/Printer/DEVICES
This option tells the printer how to print, what graphics, what printer destination and more. This area will be maintained by your vendor.
Menu Options:

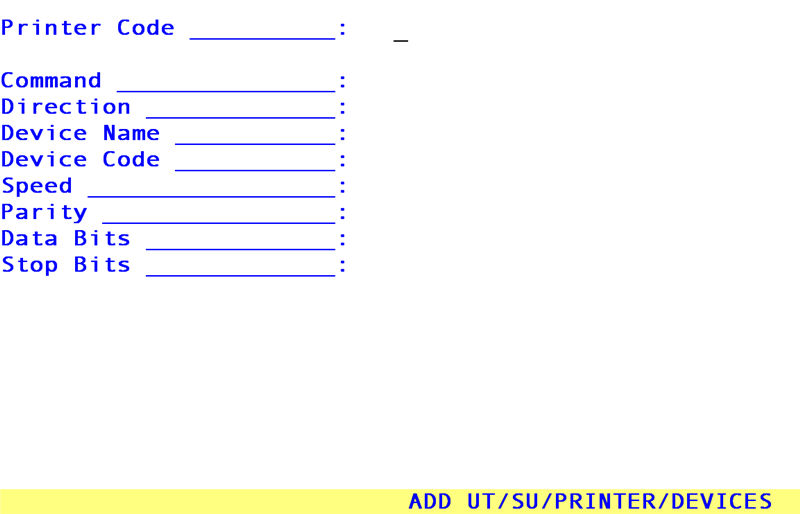

Add Add new Devices.

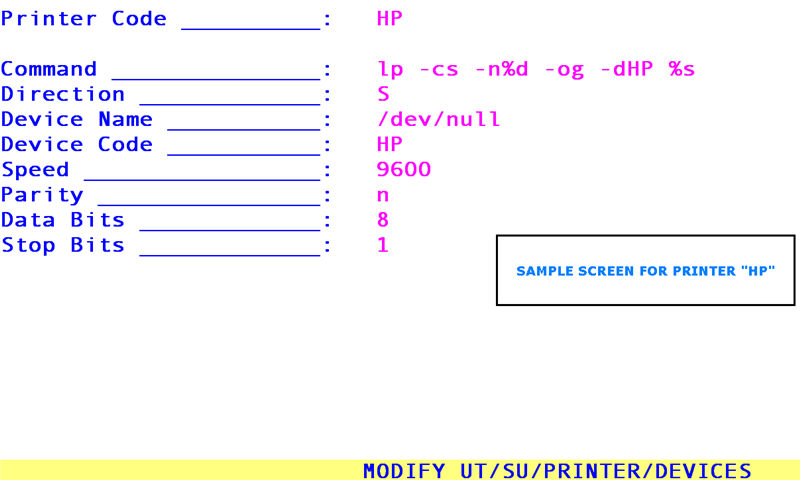

Modify Modify an existing Device.
Delete Delete an existing Device.
View View an existing Device.
Printer Code: Printer Name which is added to the 'Operating System and that will appear when you print a document.
Command: Operating System command(s) used for printing.

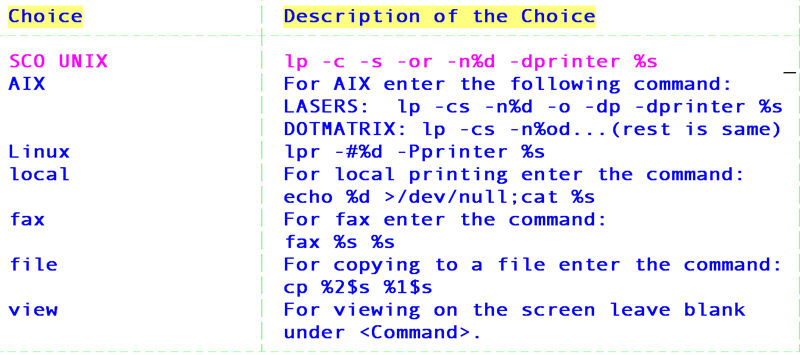

Press [F2] on the <Command> field to display the following options:
Direction: Operation System direction (e,g., spool, fax etc).

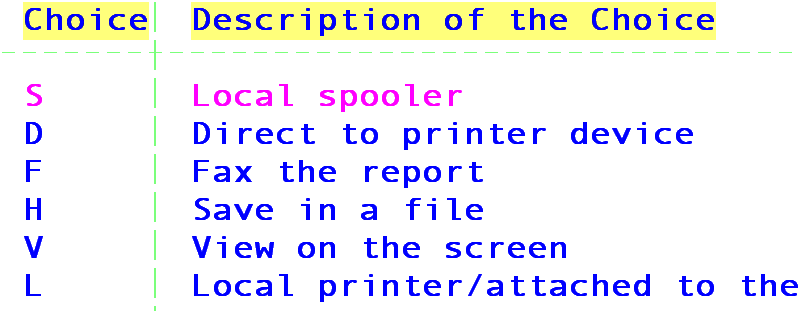

Press [F2] on the <Direction> field to display the following report options:
Device Name: Name of the device assigned in the Operating System (this option is used to define whether this is a Parallel, Serial or Network printer).
Device Code: This option defines which printer 'capabilities' will be used for the defined printer.
Speed: Defines the speed of the printer assigned (will always be 9600).
Parity: Defines digital bits per byte (always 'N' in OnSTAFF).
Data Bits: Amount of bits (always 8).
Stop Bits: Printer bits (always 1 in OnSTAFF).
